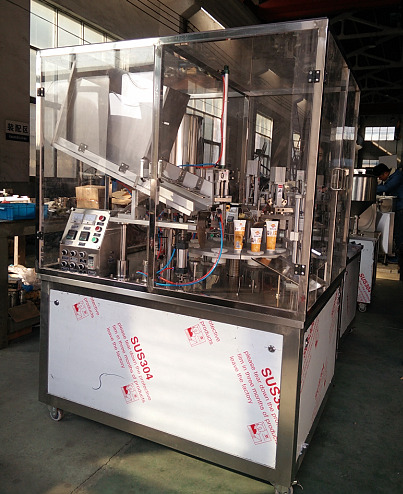

cosmetic cream plastic tube filling and sealing machine
This machine applies the transmission principle. It uses the slot wheel dividing system to drive the turntable to do intermittent movement. The machine has 8 sits. Expect manually putting the tubes on the machine, it can automatically fill the material into the tubes, heat both inside and outside of the tubes, seal the tubes, press the codes, and cut the tails and exit the finished tubes. Filling measurement is accurate. Heating time is stable and adjustable. Sealed tail looks pretty and neat and the trimming is very even. This machine has stable performance and work without any noise and pollution.
The part which is contact with the filling material is made of high-quality stainless steels. The parts which need to clean are made of quick-change device that is removable and convenient for washing.
If some materials need heating insulation, the heating thermostat device can be added outside of the feeding barrel.
Main functions:
1. automatic tube orientation
2. automatic heating
3. automatic sealing and pressing the batch, dates
4. automatic cutting the tail
5. automatic exiting
It can fill and seal the plastic tubes and plastic-aluminum laminated tubes. It is widely used in the cosmetic, medicine, adhesive and shoe polish, food industries.
1. the material contact parts are made of stainless steel SUS316;
2. the connection of the various is used the quick-change device, which is easy to disassemble and clean;
3. high-quality pneumatic components
1. power: ~220V±10%,0.75kw
2. power consumption: 350W×2 +250W×2=1.2KW
3. Tube diameter: Φ10-50 mm Tube length: 50-200mm
4. Producing speed: 20-35pcs/min
5. machine dimension: 1100X800X1600mm
6. Machine weight: 220kg
7. working air pressure: 0.5Mpa
ONE-YEAR warranty period for whole machine except of tubes and human factors etc, 18 months from the date when you received machine or 12 months when installation finished;
Consultant services for whole machine life, 24 hours technical support by email;
Call us during working time;
UPS-friendly English Soft-ware, user manual and send expericed technicians for installaton&debugging.
