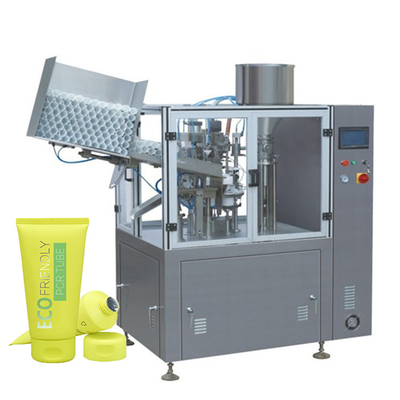

HTGF-80 Automatic Tube Filling Sealing Machine is suitable for plastic, aluminum and laminated tube. The machine can automatically orientate eye marks, filling, sealing, pressing date and cutting the end. It is widely used in daily chemical products, medicals, chemicals, cosmetics, toothpaste, food and so on. Such as shampoo, lotion, glue, cream, paste, hand sanitizer, liquid soap, liquid flavors, juice, oil, jam, honey tubes filing and sealing.
| Model | HTGF-50 | HTGF-80 | HTGF-100 | HTGF-160 |
|
Photo |
|
|
|
|
| Max power |
2.0-3.3KW(Plastic) 1.5KW(Aluminum) |
2KW(Plastic) 3.3KW(Aluminum) |
7.5KW(Plastic) 1.5KW(Aluminum) |
9.5KW(Plastic) 2.3KW(Aluminum) |
| Voltage |
220V/280V,50/60Hz |
280V/380V/50Hz/60Hz | 280V/380V/50Hz/60Hz | 380V 50Hz |
| Productivity |
20-30pcs/min |
30-80pcs/min | 80-100 tubes/min | 120-150pcs/min |
| Fill Volume |
8-250ml (change pump) |
5-200ml (change pump) |
5-200ml (change pump) |
5-250ml (change pump) |
| Tube Diameter |
10-50mm (change molds) |
10-50mm (change molds) |
11-40mm (change molds) |
10-50mm (change molds) |
| Tube Length |
50-200 mm (customized) |
210 mm (The Max) |
50-230mm (customized) |
230mm (The Max) |
| Hopper Capacity | 40L | / | 50L | / |
| Filling Accuracy | ≤±1% | ≤±1% | ≤±1% | ≤±1% |
| Dimension | 1000*800*1600mm | 1500*1100*1900mm | 2150*1150*2100mm | 3147*1555*2267mm |
| Weight | About 600KG | About 850KG | About 1300KG | About 3800KG |
Adopt PLC and touch screen control system.
Driving system is closed under working table, safe and clean.
SUS316L material, easy to clean and meet with GMP requirements.
Filling sealing parts, half-closed and transparent, easy to maintain.
Cam driving, high accuracy, high speed.
Tube orientation controlled by photocell for accurate positioning of tubes.
Filling nozzle used Japan sealing rings in case of leaking.
Automatic printing date on the tube bottom.
No tube no filling.
Automatic counting and E-stop.
Optional function: heating, mixing function, protection cover.
