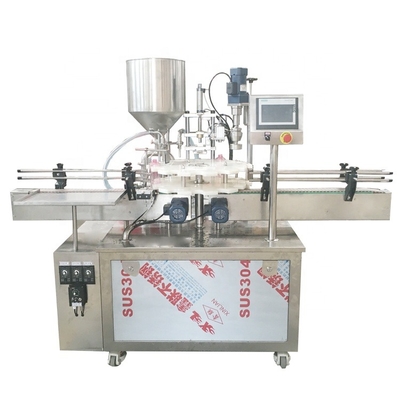

Easy operate automatic cosmetic liquid filling and capping machine for 50-200ml bottle filling capping machinery
This machine is suitable for filling liquid and cream products into various round bottles and square bottle with the filling range from 50-200ml, piston pump suitable various voscosity liquid and cream . PLC touch screen control it easay operate.
Features:
1.Man-machine dialogue system setting, visual convenient operation ,accurate filling level.
2.The filling volume and filling speed is adjustable.
3.Suitable liquid and cream bottle filling and capping
4.Multi-failure prompt function (such as depression,no filling and no cap loadingr etc).
5.No bottle no filling and no capping .
Parameter:
|
Filling range |
50-300ml |
|
Capacity |
20-30 bottles /minute |
|
Voltage |
110V/220/V380V |
|
Filling precision |
≤±1% |
|
Power |
2.5 kw |
|
Air pressure |
0.5-0.8Mpa |
|
Dimension |
2000*1000*1800mm |
|
Weight |
550kg |
Application :
Turn table:
It is an 12 positions working table.According to customer bottle shape and size custom made .Filling ,cap loading and capping all process on the turn table
Filling system:
Adopt piston pump filling could use for viscosity liquid and cream the filling precision can reach 99%.
Belt running system:
Two motor control the belt running , speed is adjustable .
Cap loading :
Adopt mechanical arm pick up the cap automatic loading on the botte mouth .
Capping head :
Adopt mechanical arm press and screw the cap , capping rate reach 99%.
Control system :
Aopt PLC touch screen control the whole working process , filling volume and filling speed is adjustable . It's easy to operate .
Q1:Are you a manufacturer or trading company?
A1:We are the manufacturer from Wuxi,so we can offer the best quality and best price of the machine to you.
Q2: How can i get the details and price of this machine ?
A2: Just send the inquiry we will have professional sales reply you within 8 hours .
Q3: This machine is in stock or customized for me ?
A3: Machine is according to your bottle size and shape custom made .
Q4: How's your production time and how can i install when i got the machine ?
A4: The production time is 30 days after received the sample and deposit , and we have machine manual or we can do video call teach you and come to your side install it .
Q5: How can i make sure i can get good machine ?
A5: As a manufacturer from purchasing parts to installation, we are strictly selected , before shipping we will use your sample test machine take video to you confirm .
