Home /Products/Cosmetic Powder Filling Machine/Food Jar Powder Filling Sealing Label Machine Powder Filling Machine Capping Spices Multifunctional New Design 2022

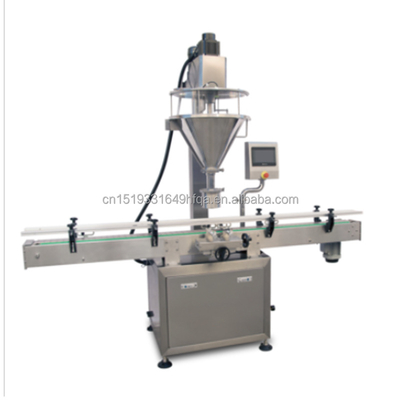

Food Jar Powder Filling Sealing Label Machine Powder Filling Machine Capping Spices Multifunctional New Design 2022

1 Set
MOQ
Food Jar Powder Filling Sealing Label Machine Powder Filling Machine Capping Spices Multifunctional New Design 2022
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Filling Machine
Applicable Industries: Food & Beverage Factory, Farms, Food Shop, Energy & Mining, Food & Beverage Shops
Showroom Location: None
Condition: New
Application: Food, Beverage, Commodity, Chemical
Packaging Type: Case
Packaging Material: Wood
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V 50-60HZ
Dimension(L*W*H): 2000*1050*2200
Weight: 300 KG
Warranty: 2 Years
Key Selling Points: High-accuracy
Machinery Capacity: 4000BPH, 8000BPH, Other
Filling Material: Water, Oil
Filling Accuracy: ±1%
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Gear, Gearbox
After Warranty Service: Video Technical Support
Basic Infomation
Payment & Shipping Terms
Packaging Details: WOODEN PACKAGE
Product Description
Product Description
With two capacity models, one is for 1 - 500g filling weight, another is for 10 - 5000g filling weight.
Stainless steel structure.
PLC control system accessed through an easy-to-use touch screw with a weight module controller.
Up to 10 sets of operating parameters can be stored.
Servo motor drive auger with up to 99% filling precision.
Include a handwheel of adjustable filling nozzle height.
No bottle no fill.
A conveyor is included.
Auger Powder Feeder is optional.
info.
Measurement method: weighing feedback tracking spiral rotary type
1. Filling weight: 10-5000g (change screw assembly)
2. Packing accuracy (tested with flour): Packing weight 100g≤±1g
≥1000g ≤0.5%
3. Packing speed: 15-60 pcs/min
4. Power supply: single phase 220V 50-60HZ
5. Whole machine power: 2 KW
6. Whole machine weight: 260Kg
7. Whole machine volume: 1000×1300×2200mm

FEATURES

This machine is an economical and practical powder and small particle automatic filling machine, which can complete automatic bottle positioning, filling and metering. It is composed of a screw measuring machine, a chain conveyor belt and a pneumatic positioning device. It can be combined with a bottle unscrambler. , Capping machine, labeling machine, etc. make up a complete set of filling lines. Equipment characteristics: 1. All stainless steel structure; combined transparent material box, easy to disassemble and wash without tools. 2. Servo motor and servo drive control screw. 3. PLC, touch screen and weighing module control. 4. Various product adjustment parameter formulas can be stored for later use. Up to 10 formulas can be stored. 5. Replacing the screw attachment can adapt to a variety of materials from ultra-fine powder to small particles. 6. Equipped with a height-adjusting hand wheel with a reasonable position to facilitate the adjustment of the height of the machine head.
Related Products
Company Profile
Shanghai Kanuo industrial co., company is a top company that manufactures good & high quality filling machine , capping machine
labeling machine, starting from 2006. The company provides the customized products and OEM service. Various new collections and
design are coming out each month with the current needs in the market. The factory own the proficient skill and updated machine
Packing&Shipping
Packing : wooden case with strong seaworthy packing suitable for exporting.
Packing Size: 1000*1350*2200mm
Net Weight: 300kgs;
Gross Weight: 250kgs.
Shipping : By sea or air.
After Sales Service
1.We have a team for after-sale service.
2.All of us trust than good service is as important as good quality.
3.If any problems in using,please contact us.
4.For the products within the warranty period,we will slove the problem for you for free.
5.For the products out of the warrany period,we also will offer the best rate for the replacement to you.
FAQ
Servo Drive System
KANUO's volumetric filling system utilizes the delicate servo drive system to control the main filling structure, achieving
high stability and precise positioning.
Vertical Driven Piston
Our exclusive servo control system coupled with the vertical movement of the filling piston provides long term energy saving and
also effectively reduces machine load rate.
Tool-Free Adjustment
Adjustments can be made through the PLC, completely tools-free, giving users a fast and efficient result. The delicate servo
control system design provides options for surface layer liquid filling, bottom layer liquid filling, and bottle neck (opening)
filling accordingly with different types of liquids.
High Accuracy
The delicate servo system controls the filling amount through precise piston strokes, providing high filling accuracy. The piston
is intelligently designed with an adjusting mechanism to enable users to obtain ultimate higher accuracy.
High Adapability
The Automatic Filling Machine can be used in food, cosmetics, and other industries. The
personalized control panel system is easy to use and offers effective result management through the production monitoring on the
PLC.

Why Choose Us
The Filling Machine is widely used for food, cosmetics and other various industries.
The personalized control panel system provides users an easy operation experience and an effective management through production
monitoring on the PLC.
KN is an automatic vials feeding & arranging/detecting, filling, and capping machine. It can even handle special vial shapes
such as rotundity, flat, and prism-shaped vials. It can also handle many different kinds of stoppers/caps, giving it an edge over
other similar machines in the world. It has met all GMP regulations through our company's superior design and manufacturing of
non-standard products. It is applicable for eyedrops, syrups, powder, perfumes, shower gels, shampoos, nail polish
lotion and much more.                        Mobile/whatsapp/wechat : 0086 186 2101 8770
Skype: casiechen7
Email : casie@cnkanuo.com
