Home /Products/Cosmetic Liquid Filling Machine/Automatic Plastic Packing Machine Automatic Plastic Ampoule Liquid Filling And Beverage Cosmetic Liquid Packing Machine

Automatic Plastic Packing Machine Automatic Plastic Ampoule Liquid Filling And Beverage Cosmetic Liquid Packing Machine

1.0 Sets
MOQ
$20,000.00(>=1 Sets)
Price
Automatic Plastic Packing Machine Automatic Plastic Ampoule Liquid Filling And Beverage Cosmetic Liquid Packing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Filling Machine
Applicable Industries: Hotels, Food & Beverage Factory, Food Shop, Energy & Mining, Food & Beverage Shops
Showroom Location: None
Condition: New
Application: Beverage, Food, Commodity, Chemical, Cigarettes, Medical, Pharmaceutical
Packaging Type: Stand-up Pouch, Plastic Ampoule/vial
Packaging Material: Plastic
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V 50/60 Hz, 220-380V/50-60Hz(Depend On Customer Requirement)
Dimension(L*W*H): 2300*850*1500mm
Weight: 900kg
Warranty: 1 Year
Key Selling Points: Long Service Life
Machinery Capacity: 4000BPH, 6000BPH
Filling Material: Oil, Juice, Liquid Products
Filling Accuracy: +-1%
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, PLC, Engine
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Free Spare Parts
Item No.: DGS-188N 5
Item Name: BFS Plastic Ampoule Liquid Packing Machine
Stander Max Forming Deepth: 14mm ( It Also Could Make OEM Design)
Cutting Frequency: 5-30 Times/min
Packaging Volume Range: 0.5-60ml
Power: 4.5KW
Machine Weight: 800kgs
Machine Size: 2300*850*1500mm
After Warranty Service: Video Technical Support, Online Support
Local Service Location: United States
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: 1.Machine will be oiled before packaging ; 2.Soft transparent film wrap the machine; 3.Fixed the machine in the wooden case; 4.Export Standard Free Fumigation Wooden Case Packaging.
Supply Ability: 100 Set/Sets per Year
Product Description
Product Description

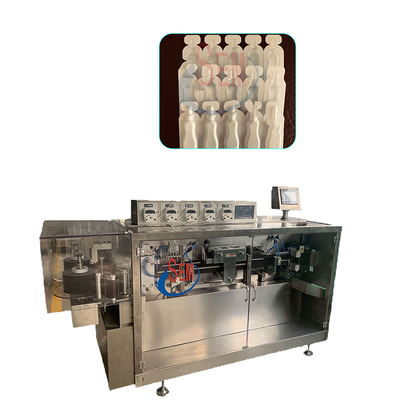

Automatic plastic ampoule form fill seal machine:
Machine Packaging is fit for medical , food , cosmetic product packaging such as oral liquid , chocolate cream ,jelly with soft
granule,medical gel , Aloe-gel,toner, hair dye,hand lotion,perfume and so on .
*This machine is controlled by PLC, the PLC brand could be choiced by customer, Siemens or Schneider or arranged by customer
requirements.
*This machine is controlled by PLC , the PLC brand could be selectable by customer, Siemens or Shneider or arranged according to
customer requirements.
*Stepless speed regulation,easy adjustment,running stable,save energy.
*Film spreading , ampoule forming,dosing,filling,sealing,batch No. coding,break line making,final shape cutting all total 8
working unit are finished automatically.
*Human-Machine Interface touching screen operation, easy to check the machine working data on touching screen, such as packing
speed , size etc.
*The Machine Pump will be mechanical pump or Peristaltic pump depend on different product , the filling is no drop , no bubble ,
it has suck back foundation.
*All direct contact with product parts are made of Stainless Steel 316L which is met the standard of GMP.
* Filling tolerance is ≤±1% depend on different products.
PLC Control
Easy Opearton
Touching Screen
Weinview
Filling Nozzles
5 nozzles
Pump
Different product packing will use different pump
Film Rolls
Two Roll Film
Filling Voume
Depend on Customer requirements

Pump

Mold

.

Perfume Product

Size Information
Item No.
DGS-188N5
Filling Volume
0.5-200ml depend on customer requirements
Power Supply
220V 50-60Hz
Power
6.5KW
Machine Weight
900kgs
Machine Size
1750*850*1500mm
Related Products
Packing&Shipping
After Sales Service
After Sales Service
*Live video face to face to check machine and teach installation and machine running
*Overseas support for installation and training worker
*We are always here , contact us any time.

If any question ,pls click here to contact us .

Company Introduction
SEM Machinery established in 1999 , specialized in producing packaging machine . liquid packing machine , sachet machine , blister machine , carton packing machine , total 4 series. experienced in pharm , food , cosmetic , fertilizer etc products packaging .
