Home /Products/Cosmetic Bottle Filling Machine/YUHANG Food Manufactured Automatic Filling And Capping Machine For Cosmetic Jar Bottle

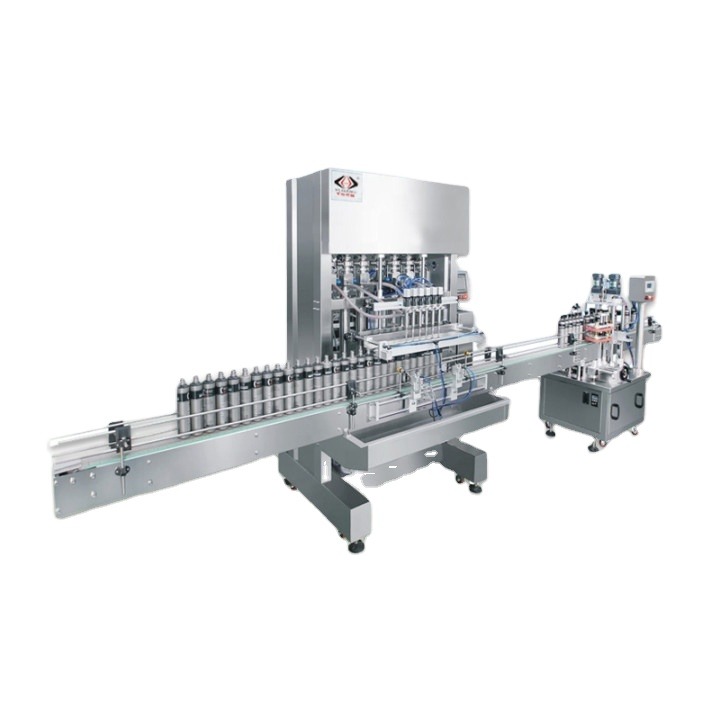

YUHANG Food Manufactured Automatic Filling And Capping Machine For Cosmetic Jar Bottle

1.0 Sets
MOQ
YUHANG Food Manufactured Automatic Filling And Capping Machine For Cosmetic Jar Bottle
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Capping Machine
Applicable Industries: Manufacturing Plant, Food & Beverage Factory
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Gearbox, Motor, Gear, Pump
Application: Food, Beverage, Medical, Chemical, Machinery & Hardware
Driven Type: Pneumatic
Automatic Grade: Automatic
Voltage: 220V
Packaging Type: Bottles
Packaging Material: Plastic, Metal, Glass
Dimension(L*W*H): 2000*700*1650mm
Weight: 200kg
Warranty: 1 Year
Key Selling Points: Wide Range Of Application
Product Name: Full Automatic Capping Machine
Function: Auto Feeding Screwing Pressing Caps
Capping Type: Screw Capping Locking
Capping Speed: 30-60 Bottles/Min
Material: Stainless Steel 304 / SUS316L
Advantage: High Efficiency
AIR PRESSURE: 0.5-0.7Mpa
Capping Heads: 4heads
Control: PLC+ Touch Screen
Suitable For: Pneumatic Manual Plastic Bottle Capping Machine
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support
Certification: TUV / CE
Basic Infomation
Certification: TUV / CE
Payment & Shipping Terms
Packaging Details: Plywood case Full automatic capping machine
Supply Ability: 20 Set/Sets per Month
Product Description
Products Description
Automatic Filling Machine

Key Benefits
· In-line format eliminates need for expensive change parts
· Ergonomically designed for easy access for rapid changeovers and cleaning
· On screen speed and fill adjustment
· Fully adjustable dive unit for neck entry or bottom-up filling
· Suitable for handling a wide range of container shapes and sizes
· Simple to use and maintain

Specifications
· Fills liquids, semi-liquids and liquids with particulates
· Available format: 2,4, 6, 8 or 12 heads
· Filling speeds: Up to 150 b.p.m.
· Fill accuracy: Up to+/- 1%
· Food and pharmaceutical quality stainless steel contact parts

Pressure
220V/380V
Air pressure
0.4-0.6Mpa
Speed
20-40 b/m
Filling accuracy
±1%
Automatic Capping/Closing Machines

The Full automatic capping machine is one kind of packaging machine in the filling production line. It is applied to the medicine,beverage, Cosmetic, Chemical and other product for capping the bottles.

Product Paramenters

Key Features
· Compressed air powered*
· Any size bottle
· Up to 40 bottles/min throughput

Suitability
· Small to medium scale production
· Free flowing liquids (perfumes, spirits, etc)
· Medium viscosity liquids (shampoos, lotions, light creams)
· Viscous syrups and adhesives
· Liquids containing particles (e.g. food products)
· * Applies to most semi-automatic machines

Recommend Products

Filling
· Net Weight Control of the filling, which is extremely accurate and consistent
· Stable and Repeatable Product Filling that automatically adjusts to compensate for variations in Aeration, Temperature or Viscosity of your product
· Reduced Product Wastage or give away leading to increased profit
· Clean Filling with minimum foam creation or risk of drips/stringing from the nozzles after filling.

Capping · Excellent repeatability and homogeneity of the capping torques at all speeds · Quick format changeover with no tools required · High versatility to multiple capping needs · Reliable and smooth cap handling with no rotation during pick-up
